Automatic Transfer Switch (ATS)
Cumper also distributes of products related to Power Generator Control System:

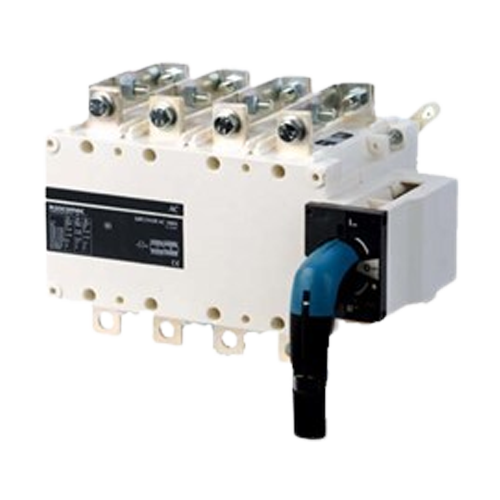

Socomec/ ATyS Automatic Transfer Switch
Rapid commissioning
With an integrated DPS and controller for functions dedicated to mains/genset applications
Secure Programming
Capacity Ranges from 125A to 3200A
3P, 240V /480V
4P, 400V
Enclosed wall mounted in NEMA1 (125A – 800A)
Enclosed free standing In NEMA1 (1000A – 3200A)
| Ampere ratings | No. of Pole | Product ref. no. |
|---|---|---|
| 125A | 3P, 240V /480V | 95233012 |
| 4P, 400V | 95234012 | |
| 160A | 3P, 240V /480V | 95233016 |
| 4P, 400V | 95234016 | |
| 200A | 3P, 240V /480V | 95233020 |
| 4P, 400V | 95234020 | |
| 315A | 3P, 240V /480V | 95233031 |
| 4P, 400V | 95234031 | |
| 400A | 3P, 240V /480V | 95233040 |
| 4P, 400V | 95234040 | |
| 500A | 3P, 240V /480V | 95233050 |
| 4P, 400V | 95234050 | |
| 630A | 3P, 240V /480V | 95233063 |
| 4P, 400V | 95234063 | |
| 800A | 3P, 240V /480V | 95233080 |
| 4P, 400V | 95234080 | |
| 1000A | 3P, 240V /480V | 95233100 |
| 4P, 400V | 95234100 | |
| 1250A | 3P, 240V /480V | 95233120 |
| 4P, 400V | 95234120 | |
| 1600A | 3P, 240V /480V | 95233160 |
| 4P, 400V | 95234160 | |
| 2000A | 3P, 240V /480V | 95234200 |
| 4P, 400V | 95234200 | |
| 2500A | 3P, 240V /480V | 95233250 |
| 4P, 400V | 95234250 | |
| 3200A | 3P, 240V /480V | 95233320 |
| 4P, 400V | 95234320 |
Delixi Electric CDQI Series ATS
Joint Venture With Global Energy Specialist
Capacity 3Phase 220V
| Model | Rating |
|---|---|
| CDQI-100A | 100A Ampere |
| CDQI-225A | 125A – 225A Ampere |
| CDQI-400A | 400A Ampere |
| CDQI-600A | 500A – 600A Ampere |
| CDQI-800A | 800A Ampere |
| CDQI-1250A | 1000A- 1250A Ampere |
Fujikiden ATS
- Rated Capacity 2-Pole / 3-Pole, 220V
- Circuit Breaker Type
- Rated Capacity 2-Pole / 3-Pole, 220V
- Circuit Breaker Type
- In water /dust proof metal enclosure with Unigear Transfer Motor
- Common tie load lugs, line side breaker lugs, normal / emergency indicating lights
- Manual / Auto operation fully wired control transfer circuit
| Rating | Estimated Panel Size | No. of Pole |
|---|---|---|
| 20 to 100Ampere | 400 x 600 x 200mm | 2 |
| 125 to 225Ampere | 400 x 600 x 200mm | 2 |
| 20 to 100Ampere | 400 x 600 x 200mm | 3 |
| 125 to 225Ampere | 400 x 600 x 200mm | 3 |
| 250 Ampere | 400 x 600 x 200mm | 3 |
| 300 to 400Ampere | 600 x 800 x 250mm | 3 |
| 500 to 600Ampere | 800 x 1000 x 300mm | 3 |
| 700 to 800Ampere | 800 x 1000 x 300mm | 3 |
| 1000 Ampere | 800 x 1800 x 500mm | 3 |
| 1200 Ampere | 800 x 1800 x 500mm | 3 |
| 1600 Ampere | 800 x 1800 x 500mm | 3 |

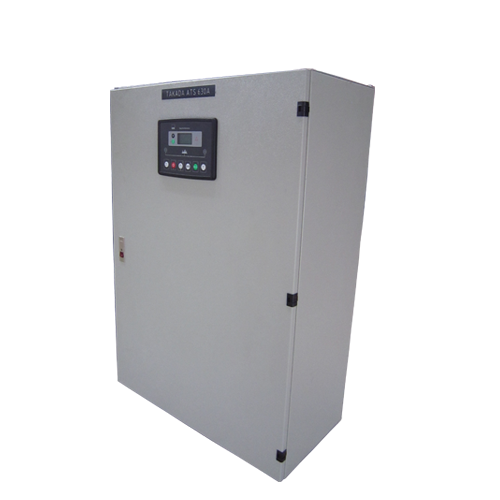

Takada ATS
- In High Speed or Closed Transition Type
- Advantage in Quick Transfer (milliseconds)
- No need for mechanical interlock
- Including manual for emergency purpose
